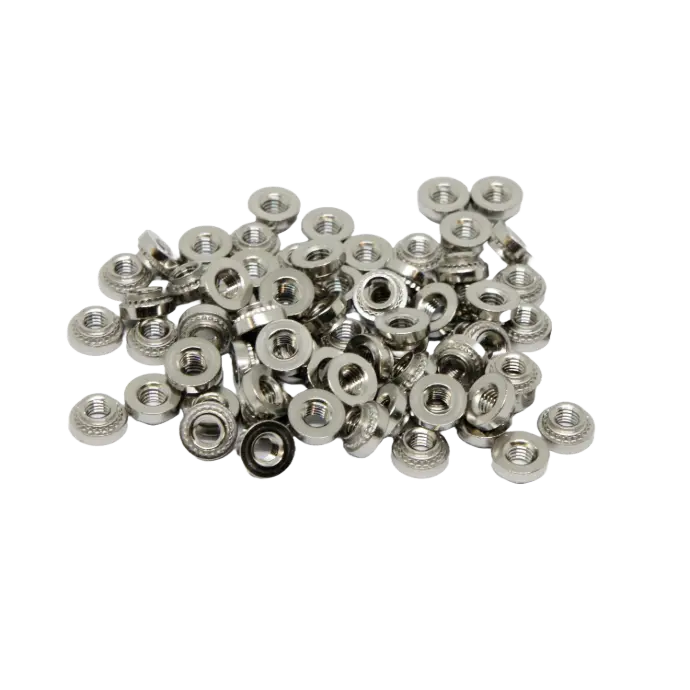

Self-Clinching Nut S/S M3

https://www.ptfast.com.au/web/image/product.template/8499/image_1920?unique=a0aefcb

Pack: 100 pcs

SKU: PT-CLS-M3-0 / Min. sheet thickness 0.8mm
SKU: PT-CLS-M3-1 / Min. sheet thickness 1.0mm
SKU: PT-CLS-M3-2 / Min. sheet thickness 1.4mm
SKU: PT-CLS-M3-3 / Min. sheet thickness 2.3mm

Bulk Savings
Buy 10+ packs to access our wholesale prices

$ 14.12 14.120000000000001 AUD $ 14.12

$ 9.88

Not Available For Sale

($ 14.12 / x100 Units)
  • Fastener Type:
  • Self-Clinching Type:
  • Self-Clinching Thread Type:
  • Self-Clinching Material Type:
  • Self-Clinching Mat. Application:
  • Self-Clinching Hole Size:
  • Self-Clinching Shank Code:

This combination does not exist.

Contact Us

Self-clinching nuts are permanently installed threaded fasteners designed to provide strong, reusable threads in thin sheet metal and other ductile materials. These nuts are installed by placing them into properly sized holes and applying a parallel squeezing force to the head. The sheet metal surrounding the head cold flows into an undercut, locking the fastener in place without the need for welding or adhesives. A serrated clinching ring around the nut ensures it will not rotate after installation, providing high pushout and torque-out resistance.

Type CLS nuts are made from 300 series stainless steel and are recommended for installation in steel or aluminium sheets of HRB 70 / HB125 or less.

All items are in stock unless otherwise stated.

Same-day dispatch for orders placed before 2pm (AEST/AEDT).

Start with the customer – find out what they want and give it to them.

Specifications

All
Fastener Type: Self-Clinching
Self-Clinching Fasteners
Self-Clinching Shank Code: 0 or 1 or 2 or 3
Self-Clinching Type: Nut
Self-Clinching Thread Type: M3
Self-Clinching Material Type: Stainless (300 Series)
Self-Clinching Mat. Application: Carbon Steel / Aluminium
Self-Clinching Hole Size: 4.25 Dia (+0.08)
