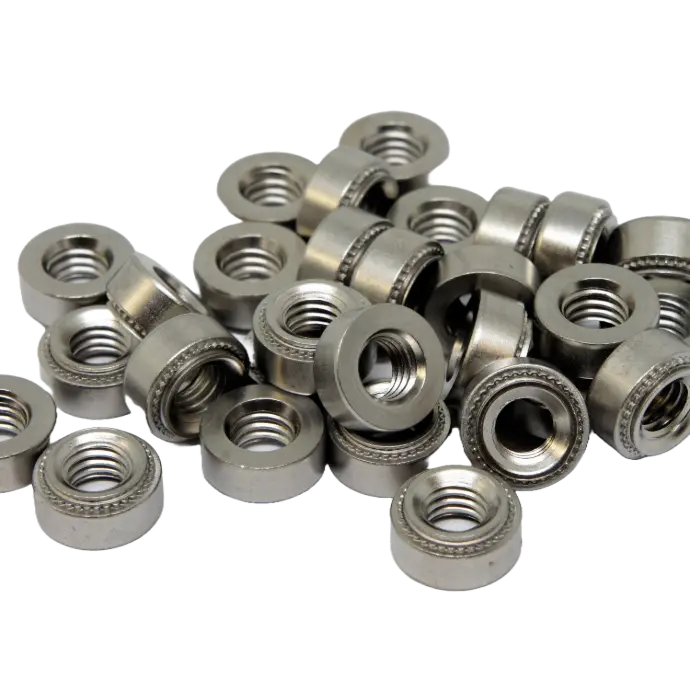

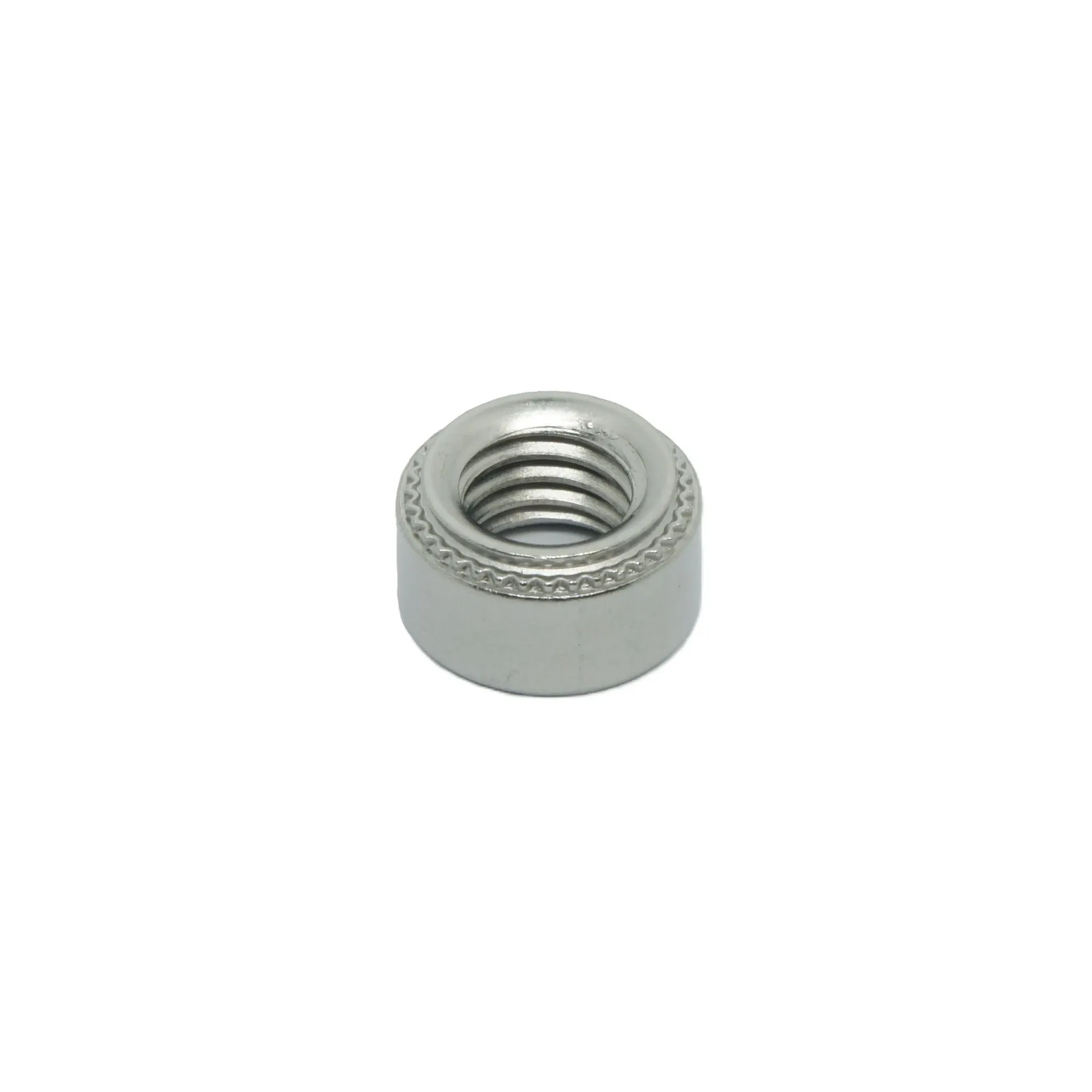

Self-Clinching Nut M8 (400 Series Stainless)

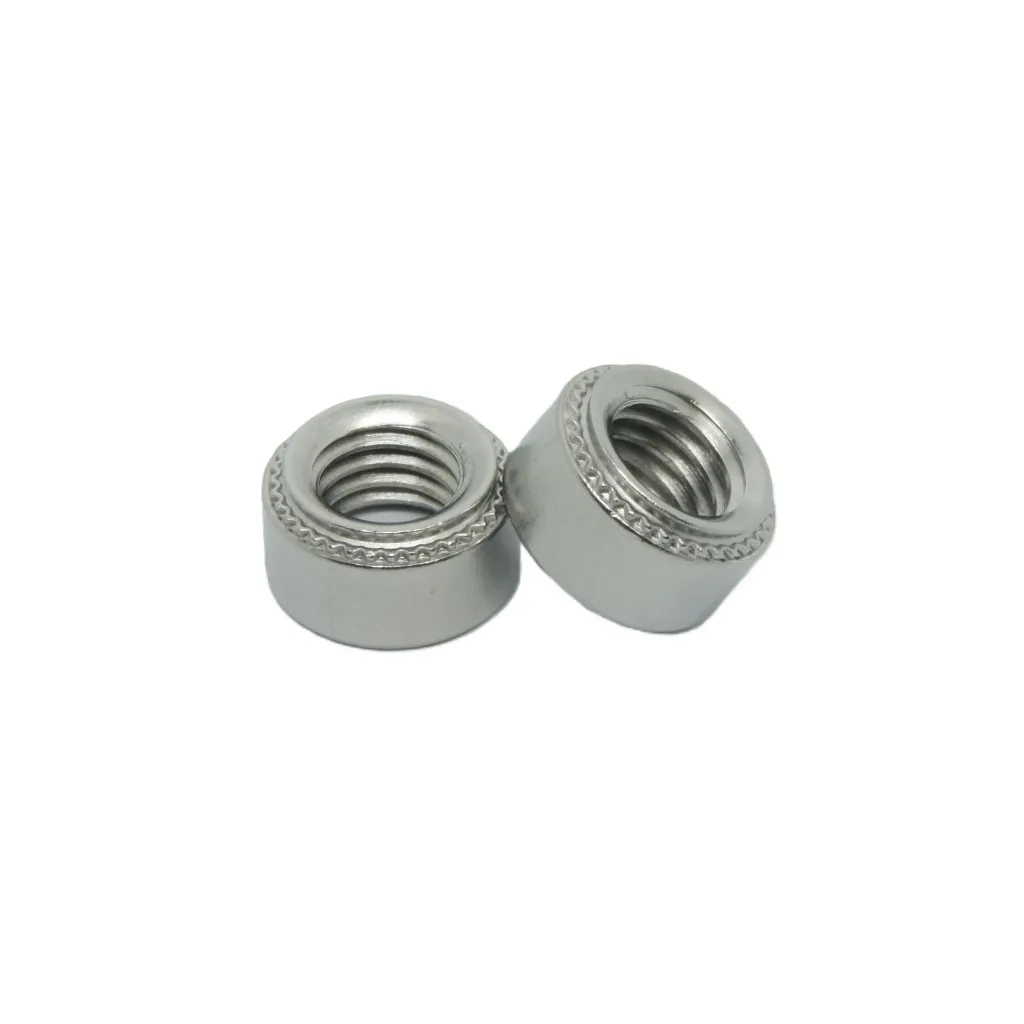

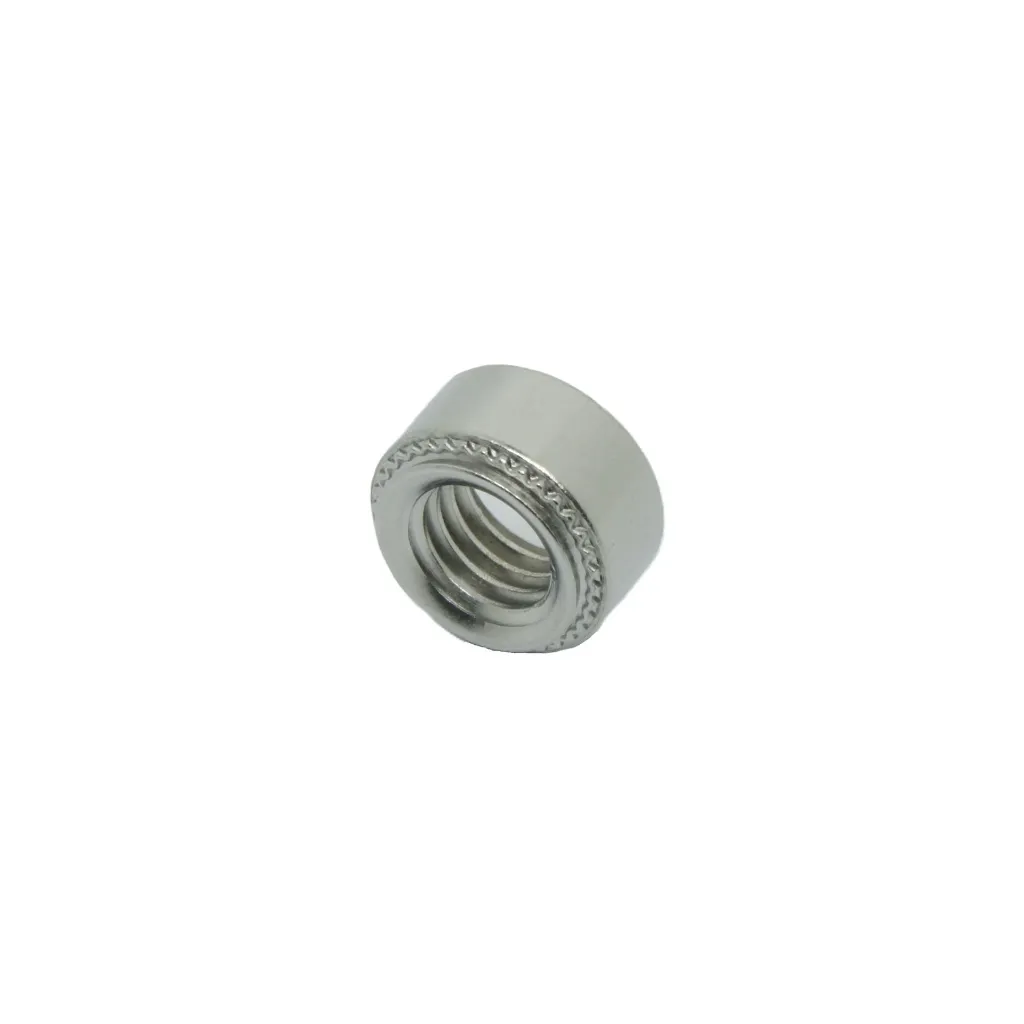

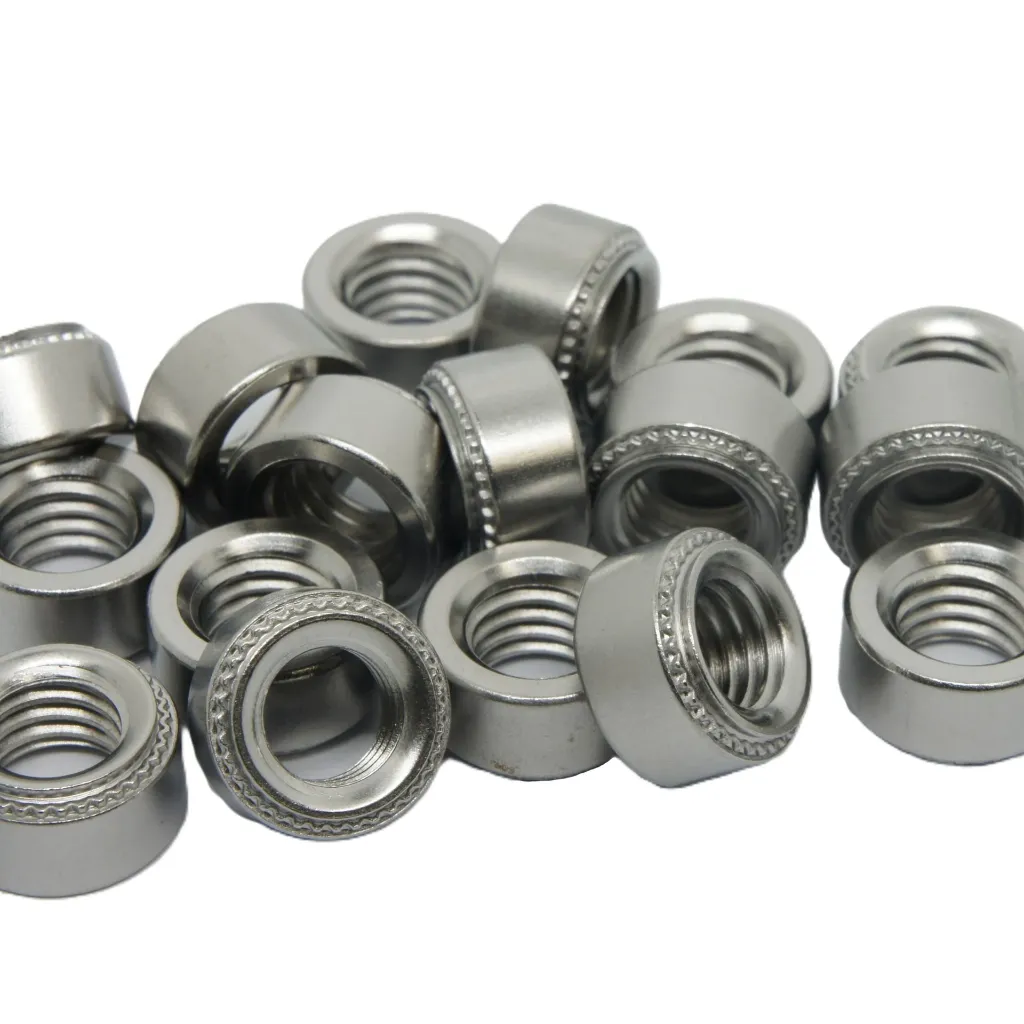

SKU: PT-SP-M8-1 / Min. Sheet thickness: 1.4mm
SKU: PT-SP-M8-2 / Min. Sheet thickness: 2.3mm

Bulk Savings
Buy 1000 or more to access our wholesale prices

$ 72.81 $ 72.81
$ 51.38

$ 72.81 / Pack of 100
  • Fastener Type:
  • Self-Clinching Type:
  • Self-Clinching Thread Type:
  • Self-Clinching Material Type:
  • Self-Clinching Mat. Application:
  • Self-Clinching Hole Size:
  • Self-Clinching Shank Code:
  • Packaging
Add to cart

Self-clinching nuts are permanently installed threaded fasteners designed to provide strong, reusable threads in thin sheet metal and other ductile materials. These nuts are installed by placing them into properly sized holes and applying a parallel squeezing force to the head. The sheet metal surrounding the head cold flows into an undercut, locking the fastener in place without the need for welding or adhesives. A serrated clinching ring around the nut ensures it will not rotate after installation, providing high pushout and torque-out resistance.

Type SP nuts are made from 400 series stainless steel and are recommended for use in Stainless Steel sheets of HRB 90 / HB192 or less.

All items are in stock unless otherwise stated.

Same-day dispatch for orders placed before 2pm (AEST/AEDT).

Start with the customer – find out what they want and give it to them.

Specifications

All
Fastener Type: Self-Clinching
Self-Clinching Fasteners
Self-Clinching Shank Code: 1, 2
Self-Clinching Type: Nut
Self-Clinching Thread Type: M8
Self-Clinching Material Type: Stainless (400 Series)
Self-Clinching Mat. Application: Stainless Steel
Self-Clinching Hole Size: 10.5 Dia (+0.08)
