  2. Rivnut / Steel / Large Flange / Full Hex Body

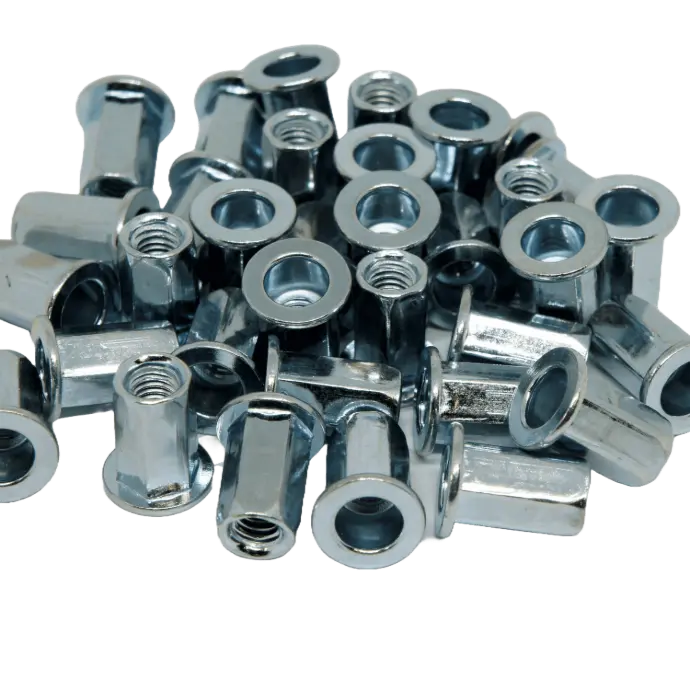

Rivnut / Steel / Large Flange / Full Hex Body

https://www.ptfast.com.au/web/image/product.template/8104/image_1920?unique=fe97965

Pack: 100 pcs

SKU: LF-FHB-M4 / Hole size: 6.0mm
SKU: LF-FHB-M5 / Hole size: 7.0mm
SKU: LF-FHB-M6 / Hole size: 9.0mm
SKU: LF-FHB-M8 / Hole size: 11.0mm
SKU: LF-FHB-M10 / Hole size: 12.0mm / 13.0mm
SKU: LF-FHB-M12 / Hole size: 15.0mm / 16.0mm

Bulk Savings
Buy 10+ packs to access our wholesale prices

$ 7.82 7.82 AUD $ 7.82

$ 5.47

Not Available For Sale

($ 7.82 / x100 Units)
  • Fastener Type:
  • Rivnut Head Type:
  • Rivnut Body Type:
  • Rivnut End Type:
  • Rivnut Material:
  • Rivnut Thread Type:

This combination does not exist.

Contact Us

Large flange, full hexagonal body rivet nuts combine two key features for enhanced strength and stability:

  1. Large Flange Head – Provides a wider load-bearing surface, distributing force more evenly across the parent material. This helps prevent pull-through and enhances support in softer or thinner materials like aluminum or composites.
  2. Full Hexagonal Body – Offers maximum resistance to spinning, especially in high-vibration applications. When installed in a hex-shaped hole, this design ensures a secure grip, preventing the rivet nut from rotating under torque.


Rivnuts (also known as nutserts, blind nuts, or threaded inserts) are a fast, reliable, and cost-effective way to create strong, load-bearing threads to thin or brittle materials—especially when access to the back is limited.  They are installed into a parent material, allowing a secondary component to be securely bolted in place.

Designed as a variation of a standard rivet, rivnuts feature a tubular body (round, knurled or hexagonal) with internal threading. They can be installed in sheet materials as thin as 0.50mm and offer one-sided (blind) installation, making them a versatile solution for many applications.

Large flange, full hexagonal body rivnuts combine two key features for enhanced strength and stability:

  1. Large Flange Head – Provides a wider load-bearing surface, distributing force more evenly across the parent material. This helps prevent pull-through and enhances support in softer or thinner materials.
  2. Full Hexagonal Body – Offers maximum resistance to spinning, especially in high-vibration applications. When installed in a hex-shaped hole, this design ensures a secure grip, preventing the rivnut from rotating under torque.

All items are in stock unless otherwise stated.

Same-day dispatch for orders placed before 2pm (AEST/AEDT).

Specifications

All
Fastener Type: Rivnut
Rivnuts
Rivnut Thread Type: M4 Grip Range 0.5mm-2.0mm or M5 Grip Range 0.5mm-2.5mm or M6 Grip Range 0.5mm-3.0mm or M8 Grip Range 1.0mm-3.5mm or M10 Grip Range 1.0mm-3.5mm or M12 Grip Range 1.0mm-4.0mm
Rivnut Head Type: Large Flange
Rivnut Body Type: Full Hex Body
Rivnut End Type: Open End
Rivnut Material: Steel
