PTfast Online Public Price list
  1. All Products
  2. Rivnut / Aluminium / Large Flange / Round Body (Knurl) /

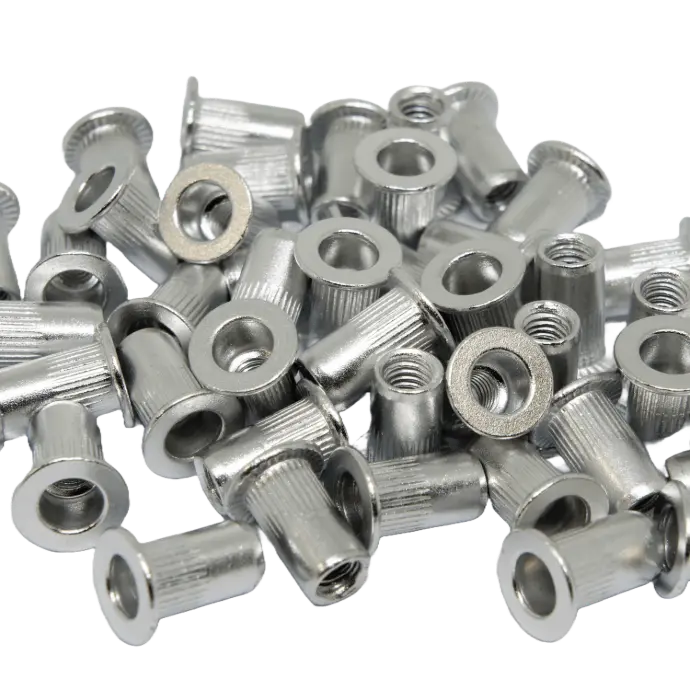

Rivnut / Aluminium / Large Flange / Round Body (Knurl) /

https://www.ptfast.com.au/web/image/product.template/8297/image_1920?unique=dace6f2

Pack: 100 pcs

SKU: LF-KB-M4-AL / Hole size: 6.0mm
SKU: LF-KB-M5-AL / Hole size: 7.0mm
SKU: LF-KB-M6-AL / Hole size: 9.0mm
SKU: LF-KB-M8-AL / Hole size: 11.0mm
SKU: LF-KB-M10-AL / Hole size: 12.0mm / 13.0mm

Bulk Savings
Buy 10+ packs to access our wholesale prices

$ 12.16 12.16 AUD $ 12.16

$ 8.50

Not Available For Sale

($ 12.16 / x100 Units)
  • Fastener Type:
  • Rivnut Head Type:
  • Rivnut Body Type:
  • Rivnut End Type:
  • Rivnut Material:
  • Rivnut Thread Type:

This combination does not exist.

Contact Us

Rivnuts (also known as nutserts, blind nuts, or threaded inserts) are a fast, reliable, and cost-effective way to create strong, load-bearing threads to thin or brittle materials—especially when access to the back is limited.  They are installed into a parent material, allowing a secondary component to be securely bolted in place.

Designed as a variation of a standard rivet, rivnuts feature a tubular body (round, knurled or hexagonal) with internal threading. They can be installed in sheet materials as thin as 0.50mm and offer one-sided (blind) installation, making them a versatile solution for many applications.

Large flange, knurled body rivnuts are designed for enhanced grip and load distribution, making them ideal for use in soft, thin, or delicate materials.

  1. Large Flange Head – Spreads the load over a larger surface area, reducing stress on the parent material and preventing pull-through, especially in softer materials.
  2. Knurled (Round) Body – Features vertical grooves along the body that bite into the parent material, providing increased resistance to spinning during installation and use.

All items are in stock unless otherwise stated.

Same-day dispatch for orders placed before 2pm (AEST/AEDT).

Start with the customer – find out what they want and give it to them.

Specifications

All
Fastener Type: Rivnut
Rivnuts
Rivnut Thread Type: M4 Grip Range 0.5mm-2.0mm or M5 Grip Range 0.5mm-2.5mm or M6 Grip Range 0.5mm-3.0mm or M8 Grip Range 1.0mm-3.5mm or M10 Grip Range 1.0mm-4.0mm
Rivnut Head Type: Large Flange
Rivnut Body Type: Round Body (Knurled)
Rivnut End Type: Open End
Rivnut Material: Aluminium
