S/S Flush Fasteners M3-1

https://www.ptfast.com.au/web/image/product.template/8280/image_1920?unique=99dd3e6

Pack: 100 pcs

SKU: PT-F-M3-1 / Min. sheet thickness 1.50mm

Bulk Savings
Buy 10+ packs to access our wholesale prices

$ 12.01 12.01 AUD $ 12.01

$ 8.40

Not Available For Sale

($ 12.01 / x100 Units)
  • Fastener Type:
  • Self-Clinching Type:
  • Self-Clinching Thread Type:
  • Self-Clinching Material Type:
  • Self-Clinching Mat. Application:
  • Self-Clinching Min. Mat. Thickness:
  • Self-Clinching Hole Size:

This combination does not exist.

Contact Us

Internal Reference: PT-F-M3-1

Self-clinching Flush Nuts are designed to sit flush in sheets as thin as 1.5mm. These fasteners are ideal for applications where load-bearing threads are needed in thin sheets, but a smooth surface is required on both sides.

The flush nut is easily installed by pressing it into a round hole in the metal sheet. Once installed, both the top and bottom of the sheet remain smooth, improving the functionality and appearance of the assembly. These nuts can also be installed before the sheet is bent or formed, providing strong threads in areas that would be hard to reach after forming.

All items are in stock unless otherwise stated.

Same-day dispatch for orders placed before 2pm (AEST/AEDT).

Start with the customer – find out what they want and give it to them.

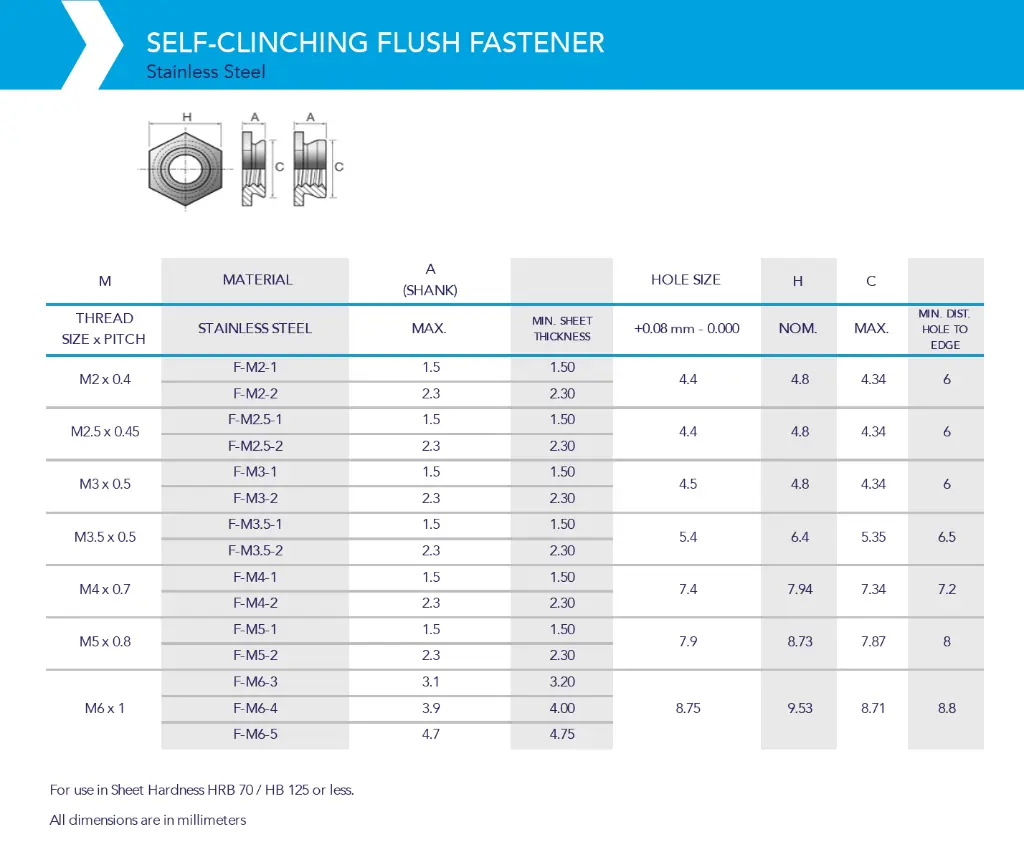

Specifications

All
Fastener Type: Self-Clinching
Self-Clinching Fasteners
Self-Clinching Type: Nut
Self-Clinching Thread Type: M3
Self-Clinching Material Type: Stainless (300 Series)
Self-Clinching Mat. Application: Carbon Steel / Aluminium
Self-Clinching Min. Mat. Thickness: 1.5 mm
Self-Clinching Hole Size: 4.5 Dia (+0.08)
