  2. Concealed-Head Self-Clinching Stud M3

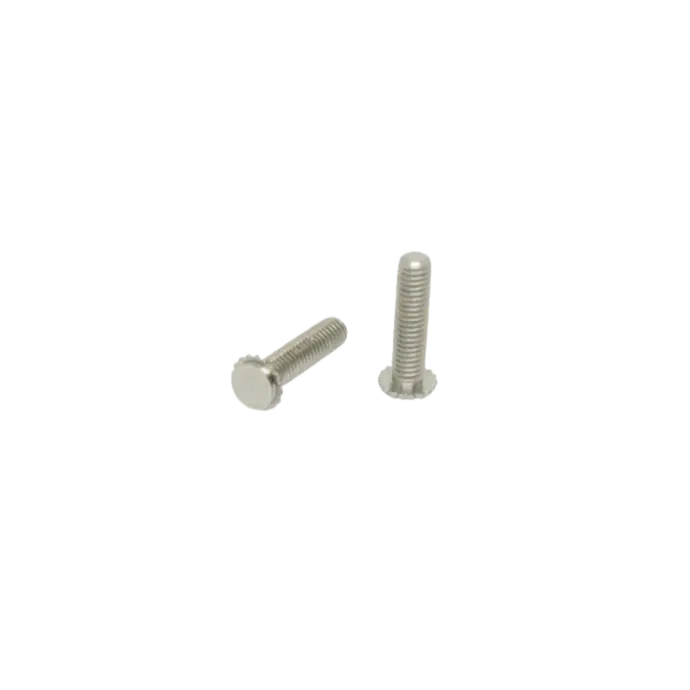

Concealed-Head Self-Clinching Stud M3

https://www.ptfast.com.au/web/image/product.template/9875/image_1920?unique=a2be887

Pack: 100 pcs

Bulk Savings
Buy 10+ packs to access our wholesale prices

$ 39.47 39.47 AUD $ 39.47

$ 35.88

Not Available For Sale

  • Fastener Type:
  • Self-Clinching Type:
  • Self-Clinching Thread Type:
  • Self-Clinching Thread Length:
  • Self-Clinching Material Type:
  • Self-Clinching Mat. Application:
  • Self-Clinching Min. Mat. Thickness:
  • Self-Clinching Hole Size:

This combination does not exist.

Contact Us

Internal Reference: PT-CHC-M3-12

Concealed Head Self-Clinching Studs (CHC)  are designed to provide strong, reusable threads on one side of a panel while keeping the opposite side smooth and unmarked. Installed into a blind, milled hole in metal sheets as thin as 1.60mm, these studs offer a permanent, high-strength attachment without visible hardware on the finished side.

Installation is simple: the fastener is placed into a milled hole and pressed into place using a hollow anvil and solid punch. During installation, the surrounding sheet metal flows around the stud’s head and into the undercut, locking it securely with excellent load-bearing capability.

Type CHC Flush Head Studs are made from 300 series Stainless Steel and are designed for installation in steel or aluminium sheets of HRB 70 / HB125 or less. They are not recommended for stainless steel applications.

Min. sheet thickness 1.6mm

Hole size (+0.08mm) 4.37mm


All items are in stock unless otherwise stated.

Same-day dispatch for orders placed before 2pm (AEST/AEDT).

Start with the customer – find out what they want and give it to them.

Specifications

All
Fastener Type: Self-Clinching
Self-Clinching Fasteners
Self-Clinching Type: Stud
Self-Clinching Thread Type: M3
Self-Clinching Thread Length: L= 12mm
Self-Clinching Material Type: Stainless (300 Series)
Self-Clinching Mat. Application: Carbon Steel / Aluminium
Self-Clinching Min. Mat. Thickness: 1.6mm
Self-Clinching Hole Size: 4.37 Dia (+0.08)
